Inductive Spark Plug Sensor Engine RPM Meter Shift Lights Schematics



Inductive Spark Sensor Schematic



Signal driver (Schmitt Trigger)



Download my Android Apps!
Κατεβάστε τις Android εφαρμογές μου!



To download from Google Play scan QR Codes or click the banners.
Για να κατεβάσεις τις εφαρμογές σάρωσε τους QR Codes ή πάτα στις εικόνες.




7-Segment LED Displays Driver

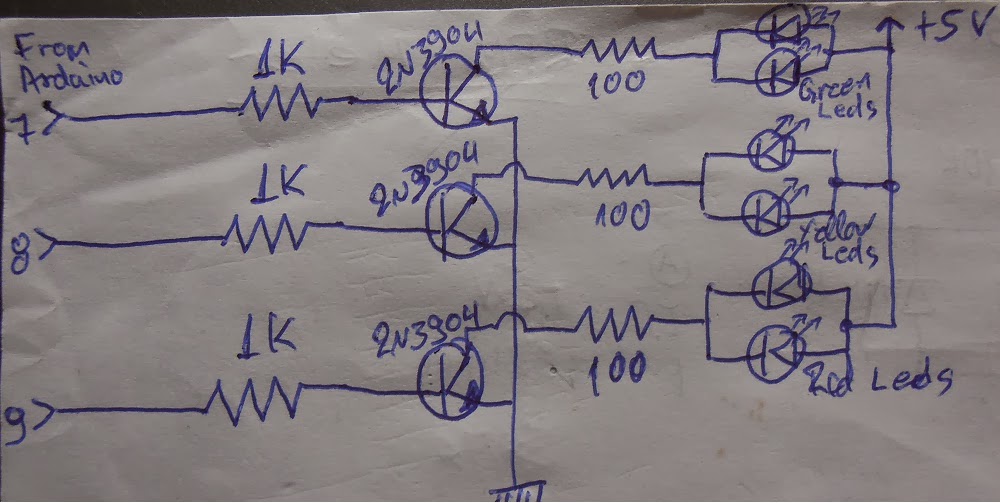

Shift Light LED's Driver



Dip Switches Configuration table


12V to 5V power supply

13 comments:

  1. I think that the zener and the 1n4148 in the sensor schematics are useless. The transistor maximum Vbe is 0.8V so a 5.1V zener would never work! Also you already have a rectifying diode next to the coil, why do you need to place another(The 1n4148 one). I suggest to add a 220 ohm resistor on the base pin because the junction PN is a diode, whit very small current capability

    ReplyDelete
    Replies
    1. I see that zener as a overvoltage protection, as long as an dvs diode would work better, it cost 10 to 20 times more.

      Delete
  2. Shouldn't the ground of the Schmitt Trigger be at 7?
    In the circuit diagram its given at 1.
    Secondly in the photograph of the circuit you are not using the Zener Diode,Why?

    ReplyDelete
    Replies
    1. And in the actual circuit,you have also connected the pin 1 and 2 of schmitt trigger to ground,Can you please explain why?

      Delete
    2. It's 1 and 3. All the inputs that not in use, shold be grounded. For better behavior.

      Delete
  3. hello, I did everything like this,but my sign are full of noise and the output voltage is maximum 400mV to the arduino.
    The maximum voltage for the input circuit is 480mV between the two wires of the pick-up coil...
    I think it's supposed to be a sign of more or less 5v for arduino and a signal without noise and square wave...is correct? What can be wrong? Will be my pick up coil? I already have 12 turns on the spark plug.

    ReplyDelete
  4. Pin 9 connected display 7 segment
    pin 9 connected Shift Light LED's Driver red

    ReplyDelete
  5. can you please provide me all the specification of all the electrical components you have used in these circuits???

    ReplyDelete
    Replies
    1. Hello, do you know already all the electrical components he have used? Can someone help me with this? Please

      Delete
    2. Hello, do you know already all the electrical components he have used? Can someone help me with this? Please

      Delete
  6. I cannot read some of the handwriting.

    ReplyDelete
  7. For those with reset and intermittent problems, you may be attaching the Arduino to the bike frame a long distance from the spark coil. Noise capacitively coupled from the spark plug wire then has to travel those possibly long wires to the Arduino board before reaching ground. Noise may, depending on how you connect the sensor and Arduino, actually travel through the power line or a signal line rather than ground injecting noise into the CPU. My suggestion is to try connecting the sensor board ground to the chassis close to the sensor coil in addition to connecting the Arduino ground to the chassis close to the Arduino.

    ReplyDelete
